 TMS320F28335 eZdsp Starter Kit
  • TMS320F28335 eZdsp Starter Kit
  • TMS320F28335 eZdsp Starter Kit

    参考价格: ¥0.00
    品  牌:TI
    产品型号:28335 (TMS320F28335)
    所在地区:北京
    上架时间:2012年09月17日
    留言咨询
    与企业取得联系时请告知该信息获取自中国教育装备采购网
    我要分享
    详细说明

    TMS320F28335 eZdsp Starter Kit

    Features

    Hardware Features

    • TMS320F28335 Floating-Point Digital Signal Controller
      • 150 MHz operation
      • 512 KB on-chip flash memory
      • 68 KB on-chip RAM
      • 12-bit ADC with 16 input channels
    • 128k x 16 off-chip SRAM
    • Clamshell socket for the F28335 DSC
    • RS-232 interface with on-board transceiver and 9-pin DSUB connector
    • CAN interface with on-board transceiver and 9-pin DSUB connector
    • Multiple expansion connectors provide access to all F28335 I/O signals
    • Embedded USB JTAG Controller
    • Operates from a single 5V supply with provided AC adapter
    • IEEE 1149.1 JTAG emulation connector





    Software Features

    • Code Composer Studio™ Integrated Development Environment for C2000 including C compiler, assembler, linker, real-time debug support, data visualization, a profiler and a flexible project manager.
    • eZdsp diagnostic software, including test examples for UART, CAN, I2C, and memory
    • Texas Instruments’ Flash APIs to support the F28335
    • Texas Instruments’ F28335 header files and example software

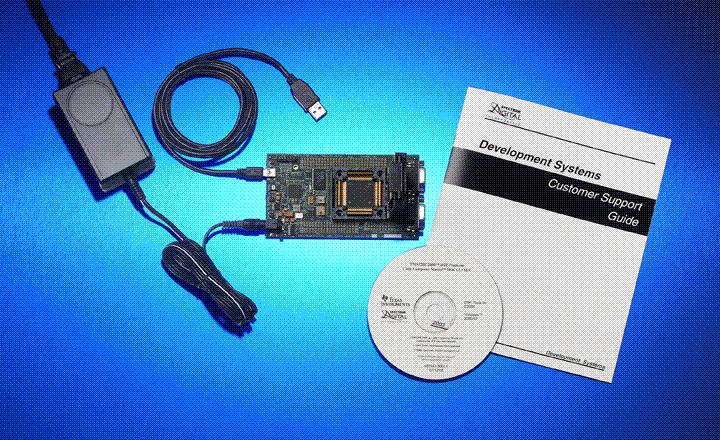

    Whats Included

    • CD-ROM with Code Composer Studio v3.3 for C2000, eZdsp diagnostic software, and code examples
    • Quick Start Guide
    • Target board for the F28335 DSC
    • Technical Reference Manual
    • USB Cable Universal 5v power supply with power cords for each WW region



    Ordering Information

    Product: Blackhawk™ USB510 JTAG Emulator
    Part No.: BH-USB-510
    TI DSP platforms: C6000, C5000, C2000, OMAP, DAVINCI
    Compatible Operating Systems: Windows® 2000, XP and Vista
