    氘灯和卤钨灯混合装置 美国SP公司

    • Variable narrowband light output selection from deep UV (180nm) to Near IR (2.6µm)
    • Computer controlled via standard RS232 interface
    • Scans in both directions and in nanometers, Angstroms, microns, wave-numbers, or eV
    • May be configured for optimal fiber optic illumination
    • Modular design allows for reconfiguring
    • Couples to Spectral Products equipment

    Simple, Flexible

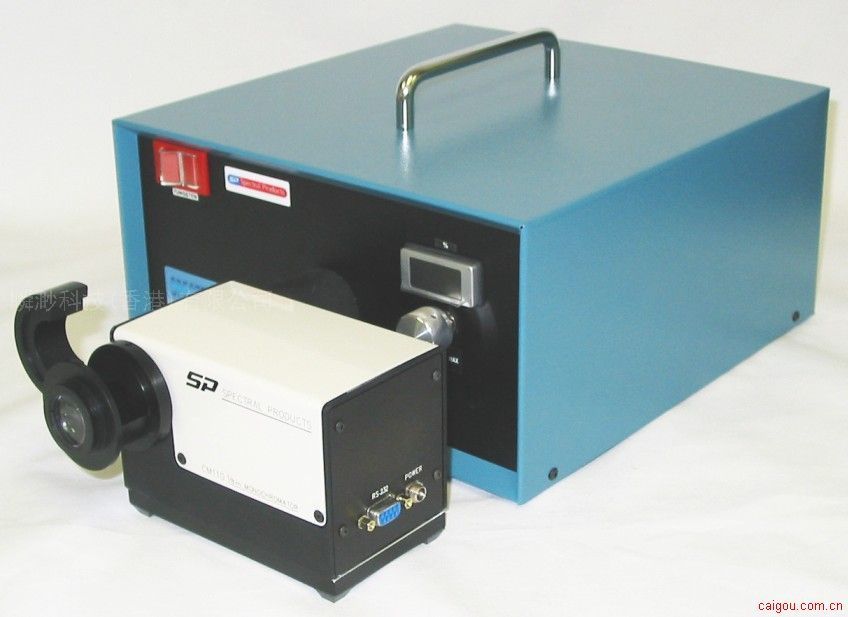

    Spectral Products has a tunable light source to meet your needs. Each model is based on our popular CM110 dual grating, 1/8-meter monochromator, paired with one of Spectral Products Deuterium & Tungsten-Halogen hybrid light sources.

    Models:

    • ASTN-D1-W050: One 30W deep UV Deuterium & 50W Tungsten-Halogen model.
    • ASTN-D1-W075: One 30W deep UV Deuterium & 75W Tungsten-Halogen model.
    • ASTN-D1-W100-L: One 30W deep UV Deuterium & 100W low color temperature Tungsten-Halogen model.
    • ASTN-D1-W100-H: One 30W deep UV Deuterium & 100W high color temperature Tungsten-Halogen model.
    • ASTN-D1-W150: Two 30W deep UV Deuterium & 150W Tungsten-Halogen model.
    • ASTN-D2-W050: Two 30W deep UV Deuterium & 50W Tungsten-Halogen model.
    • ASTN-D2-W075: Two 30W deep UV Deuterium & 75W Tungsten-Halogen model.
    • ASTN-D2-W100-L: Two 30W deep UV Deuterium & 100W low color temperature Tungsten-Halogen model.
    • ASTN-D2-W100-H: Two 30W deep UV Deuterium & 100W high color temperature Tungsten-Halogen model.
    • ASTN-D2-W150: Two 30W deep UV Deuterium & 150W Tungsten-Halogen model.

    Please call (860)928-5834 for details on these exciting products!

    Band-pass region and width is controlled by selection of monochromator slit size and gratings.




    Feature Description
    Monochromator Model: CM110
    f/#: 3.9
    Grating: Two gratings can be installed (ref, CM Gratings)
    Interface: RS232 standard
    Light Source Model: ASBN-D1-W series, ASBN-D2-W series
    Power:
    Deuterium: 30 Watts,
    Tungsten-Halogen: 50 ~ 150 Watts
    Bulb Life:
    Deuterium: 1000 hours typical, 500 hours minimum
    Tungsten-Halogen: 50 ~ 2,000 hours
    For detail information, please click here.
    Accessories & Options Order sorting filter holder: AB202 included.
    Order sorting filter: AB3XXX series (sold separately).
    Fiber coupling output: AFCM-L-XX, XX: SM-SMA, FC-FC, CS-Ferrule. Sold separately.
