 梅州紫外老化测试仪
  • 梅州紫外老化测试仪
  • 梅州紫外老化测试仪

    参考价格: ¥32000.00
    品  牌:宏展
    产品型号:Q8播阳系列
    适用范围:高教 职教
    所在地区:广东 东莞
    上架时间:2018年08月21日
    留言咨询
    4008190228-0454
    与企业取得联系时请告知该信息获取自中国教育装备采购网
    我要分享
    详细说明

    梅州紫外老化测试仪

    梅州紫外老化测试仪

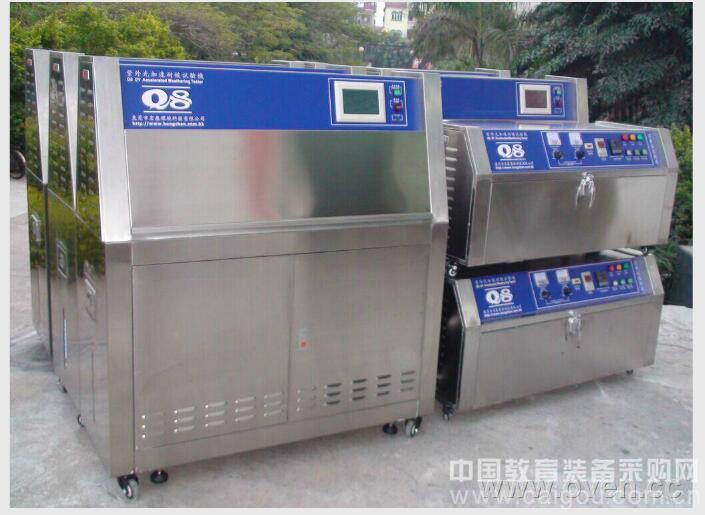

    Q8/UV紫外光加速老化试验机主要用于模拟对阳光、潮湿和温度对材料的破坏作用;材料老化包括褪色、失光、强度降低、开裂、剥落、粉化和氧化等。紫外光加速老化试验机通过模拟阳光、冷凝、模仿自然潮湿,试样在模拟的环境中试验几天或几周的时间,可再现户外可能几个月或几年发生的损坏。
    Q8/UV紫外光加速老化试验机中,紫外灯的荧光紫外等可以再现阳光的影响,冷凝和水喷淋系统可以再现雨水和露水的影响。整个的测试循环中,温度都是可控的。典型的测试循环通常是高温下的紫外光照射和相对湿度在100%的黑暗潮湿冷凝周期;典型应用在油漆涂料、汽车工业、塑胶制品、木制品、胶水等。 模拟阳光
    阳光中的紫外线是造成大多数材料耐久性能破坏的主要因素。我们使用紫外灯来模拟阳光中的短波紫外部分,它产生很少的可见光或红外光谱能量。我们可以根据不同的测试要求选择不同波长的UV紫外灯,因为每种灯在总的紫外线辐照能量和波长都不一样。通常,UV灯管可分为UVA和UVB两种。
    Q8/UV灯管
    UVA-340灯管:UVA-340 灯管可极好地模拟太阳光中的短波紫外光,即从365 纳米到太阳光截止点 295 纳米的波长范围。
    UVB-313灯管:UVB-313 灯管发出的短波紫外光比通常照射在地球表面的太阳紫外线强烈,从而可以最大程度的加速材料老化。然而,该灯管可能会对某些材料造成不符合实际的破坏。UVB-313 灯管主要用于质量控制和研究开发,或对耐候性极强的材料运行测试。
    UVA-351灯管:模拟透过窗玻璃的阳光紫外光,它对于测试室内材料的老化最为有效。
    潮湿冷凝环境
    在很多户外环境中,材料每天的潮湿时间可长达12小时。研究表明造成这种户外潮湿的主要因素是露水,而不是雨水。Q8/UV通过独特的冷凝功能来模拟户外的潮湿侵蚀。在试验过程中的冷凝循环中,测试室底部蓄水池中的水被加热以产生热蒸气,并充满整个测试室,热蒸汽使测试室内的相对湿度维持在100%,并保持一个相对高温。试样被固定在测试室的侧壁,从而试样的测试面曝露在测试室内的环境空气中。试样向外的一面暴露在自然环境中具有冷却效果,导致试样内外表面具备温差,这一温差的出现导致试样在整个冷凝循环过程中,其测试面始终有冷凝生成的液态水。
    由于户外曝晒接触潮湿的时间每天可以长达十几小时,因此典型的冷凝循环一般持续几个小时。Q8/UV提供两种潮湿模拟方法。应用最多的是冷凝方法,它是模拟户外潮湿侵蚀的最好方法。所有的Q8/UV型号都可运行冷凝循环。因为有些应用条件也要求使用水喷淋以达到实际的效果,所以有些Q8/UV型号既可运行冷凝循环又可运行水喷淋循环。
    温度控制
    在每个循环中,温度都可控制在一个设定值。同时黑板温度计可以监控温度。温度的提高可以加速老化的进程,同时,温度的控制对于测试的可再现性也是很重要的。
    水喷淋系统
    对于某些应用而言,水喷淋能更好地模拟最终使用的环境条件。水喷淋在模拟由于温度剧变和由于雨水冲刷所造成的热冲击或机械侵蚀是非常有效的。在某些实际应用条件下,例如阳光下,聚集的热量由于突降的阵雨而迅速消散时,材料的温度就会发生急剧变化,产生热冲击,这种热冲击对于许多材料而言是一种考验。Q8/UV的水喷淋可以模拟热冲击和/或应力腐蚀。
    喷淋系统有12个喷嘴,在测试室的每一边各有6个;喷淋系统可运行几分钟然后关闭。这短时间的喷水可快速冷却样品,营造热冲击的条件。
    照射强度控制:可选
    选配照射强度控制选件可得到精确型和重复性好的测试结果;光强控制系统允许用户根据不同的测试要求设置不同的光照强度。通过其反馈回路装置精确控制照射强度;同时也可以延长荧光灯的使用寿命
    Q8/UV紫外光加速老化试验机主要技术指标

    型号 Model

    Q8/UV3 Q8/UV2 Q8/UV1
    UV照射 Exposure
    冷凝 Condensation
    光照控制 Irradiancs Control
    可调光线 Adjustable irradiance
    喷水 Water Spray
    热冲击 Thermal Shock
    自动侦路 Self-diagnostics
    灯泡数量 Lamp Q'ty 紫外线灯管 8 支,备品 4 支 Ultravloiet lamp 6pcs, spares 4 pcs (美国Q-LAB,Q-Panel,美国ATLAS,UVA340,UVB313,UVC351)
    记录器 Recorder 选配 (Optional)
    辐射计 Q8-CR Calibration Radiometer
    选配 (Optional)
    机器辐射强度:
    1.0W/m2/340nm以内可调
    1.1W/m2/313nm以内可调
    UV温度 Temp 50 ℃ -75 ℃
    冷凝温度 Condensation Temp 40 ℃ -60 ℃
    测试容量 Test Capacity
    48pcs片/se spray( 75 x 150m m )
    50pcs片/basic (75x150mm)
    水凉及耗量 Water 蒸馏水每分钟 蒸馏水每日 8 公升
    体积 Dimension(W x D x H) 137 x 53 x 136cm
    重量 Weight 136kg
    电源 Power 1 ψ, 120V/60Hz,16A or 230V/50Hz, 9A,1800W(max)

    Q8/UV紫外光加速老化试验机测试方法

    通用
    •ISO 4892-1 Plastics- Methods of exposure to laboratory light sources-Part 1: General Guidance
    •ASTM G-151, Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources
    •ASTM G-154, Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Non-Metallic Materials
    •British Standard BS 2782: Part 5, Method 540B (Methods of Exposure to Lab Light Sources)
    •SAE J2020, Accelerated Exp. of Automotive Exterior Materials Using a Fluorescent UV/Condensation Apparatus
    •JIS D 0205, Test Method of Weatherability for Automotive Parts (Japan)
    •GB/T 16422.1,塑料实验室光源暴露试验方法 第1部分:总则
    ________________________________________
    涂料
    •ISO 11507, Paints & varnishes-Exposure of coatings to artificial weathering-Exposure to fluorescent UV and water
    •ISO 20340, Paints & varnishes –Performance requirements for protective paint systems for offshore and
    related structures
    •ASTM D-3794, Standard Guide for Testing Coil Coatings
    •ASTM D-4587, Standard Practice for Light/Water Exposure of Paint
    •US Government, FED-STD-141B
    •US Govt., Federal Specification TT-E-489H, Enamel, Alkyd, Gloss, Low VOC Content
    •US Govt., Federal Specification TT-E-527D, Enamel, Alkyd, Lusterless, Low VOC Content
    •US Govt., Federal Specification TT-E-529G, Enamel, Alkyd, Semigloss, Low VOC Content
    •US Govt., Federal Specification TT-P-19D Paint, Latex, Acrylic Emulsion, Ext. Wood & Masonry
    •NACE Standard TM-01-84 Procedures for Screening Atmospheric Surfaced coatings
    •GM4367M Topcoat Materials - Exterior
    •GM 9125P Laboratory Accelerated Exposure of Automotive Material
    •Korean Standard M5982-1990, Test Method for Accelerated Weathering
    •Spanish Std, UNE 104-281-88 Accelerated Testing of Paints and Adhesives with Fluorescent UV Lamps
    •Israeli Standard No. 330, Steel Windows
    •Israeli Standard No. 385, Plastic Windows
    •Israeli Standard No. 935, Road Marking Paint
    •Israeli Standard No. 1086, Aluminum Windows
    •NISSAN M0007, Fluorescent UV/Condensation Test
    •JIS K 5600-7-8, Testing Methods for Paints
    •MS 133: Part F16, Methods of Test for Paints and Varnishes: Part F16: Exposure of Coatings to Artificial Weathering- Exposure to Fluorescent UV and Water (ISO 11507)
    •NBR-15.380 Paints for buildings–Methods for performance evaluation of paints for non-industrial buildings – Resistance to UV irradiation/water vapor condensation, by accelerated test
    •prEN 927-6 Paints & varnishes–Coating materials and coating systems for exterior wood – Pt. 6: Exposure of wood coatings to artificial weathering using fluorescent UV and water
    •GB/T 12967.4,铝及铝合金阳极氧化 着色阳极 氧化膜耐紫外光性能的测定
    ________________________________________
    纺织品
    •AATCC Test Method 186, Weather Resistance: UV Light and Moisture Exposure
    •ACFFA Test Method for Colorfastness of Vinyl Coated Polyester Fabrics
    ________________________________________
    印刷油墨
    •ASTM F1945, Lightfastness of Ink Jet Prints Exposed to Indoor Fluorescent Lighting ________________________________________
    橡胶
    • GB/T 16585,硫化橡胶人工气候老化(荧光紫外灯)试验方法
    ________________________________________
    电工电子产品
    • GB/T 19394,光伏(PV)组件紫外试验
    type the link here
    ________________________________________
    粘合剂和密封剂
    •ASTM C 1501, Standard Test Method For Color Stability of Building Construction Sealants as Determined byLaboratory Accelerated Weathering Procedures
    •ASTM C-1184, Specification for Structural Silicone Sealants
    •ASTM C-1442, Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus
    •ASTM D-904, Standard Practice for Exposure of Adhesive Specimens to Artificial Light
    •ASTM D-5215, Standard Test Method for Instrumental Evaluation of Staining of Vinyl Flooring by Adhesives
    •American Plywood Assn., Approval Procedures for Synthetic Patching Materials, Section 6
    •Spanish Std, UNE 104-281-88 Accelerated Testing of Paints and Adhesives with Fluorescent UV Lamps
    ________________________________________
    塑料
    •ISO 4892 Plastics - Methods of Exposure to Laboratory Light Sources-Part 3: Fluorescent UV Lamps
    •DIN 53 384, Testing of plastics, Artificial Weathering and Exposure to Artificial Light
    •Spanish Standard UNE 53.104 (Stability of Plastics Materials Exposed to Simulated Sunlight)
    •Israeli Standard No. 385, Plastic Windows
    •JIS K 7350, Plastics - Methods of Exposure to Laboratory Light Sources-Part 3: Fluorescent UV Lamps
    •ASTM D-1248, Standard Specification for Polyethylene Plastics Extrusion Materials for Wire and Cable
    •ASTM D-4329, Standard Practice for Light/Water Exposure of Plastics
    •ASTM D-4674, Test Method for Accelerated Testing for Color Stability of Plastics Exposed to Indoor
    Fluorescent Lighting and Window-Filtered Daylight
    •ASTM D-5208, Standard Practice for Exposure of Photodegradable Plastics
    •ASTM D-6662, Standard Specification for Plastic Lumber Decking Boards
    •ANSI C57.12.28 Specification for Accelerated Weathering of Padmounted Equipment Enclosure Integrity
    •ANSI, A14.5 Specification for Accelerated Weathering of Portable Reinforced Plastic Ladders
    •Edison Electrical Inst. Specification for Accelerated Weathering of Padmounted Equip. Enclosure Integrity
    •Wisconsin Electric Power Specification for Polyethylene Signs
    •GB/T 18950,橡胶和塑料软管 静态下耐紫外线性能测定
    •GB/T 16422.3,塑料实验室光源暴露试验方法 第3部分:荧光紫外灯
    ________________________________________
    屋顶材料
    •ASTM D-4799, Test Method for Accelerated Weathering of Bituminous Roofing Materials
    •ASTM D-4811, Standard Specification for Nonvulcanized Rubber Sheet Used as Roof Flashing
    •ASTM D-3105, List of Test Methods for Elastomeric and Plastomeric Roofing & Waterproofing
    •ASTM D-4434, Standard Specification for PVC Sheet Roofing
    •ASTM D-5019, Standard Specification for Reinforced Non-Vulcanized Polymeric Sheet Used in Roofing Membrane
    •ANSI/RMA IPR-1-1990 Req. for Non-Reinforced Black EPDM Sheet for Roofing Membrane
    •ANSI/RMA IPR-2-1990 Req. for Fabric-Reinforced Black EPDM Sheet for Roofing Membrane
    •ANSI/RMA IPR-5-1990 Req. for Non-Reinforced Non-Black EPDM Sheet for Roofing Membrane
    •ANSI/RMA IPR-6-1990 Req. for Fabric-Reinforced Non-Black EPDM Sheet for Roofing Membrane
    •British Standard BS 903: Part A54 Annex A & D, Methods of Testing Vulcanized Rubber
    •CGSB-37.54-M, Canadian General Standards Board Spec. for PVC Roofing & Waterproofing Membrane
    •DIN EN 534, Corrugated bitumen sheets
    •EOTA TR 010, Exposure procedure for artificial weathering
    •RMA Specification for Reinforced Non-Vulcanized Chlorosulfonated Polyethylene Sheet for Roofing Membrane
    ________________________________________
    复合材料

    •Israeli Standard No. 385, Anodic Coatings on Aluminum
    ________________________________________
    梅州外老化测试仪
