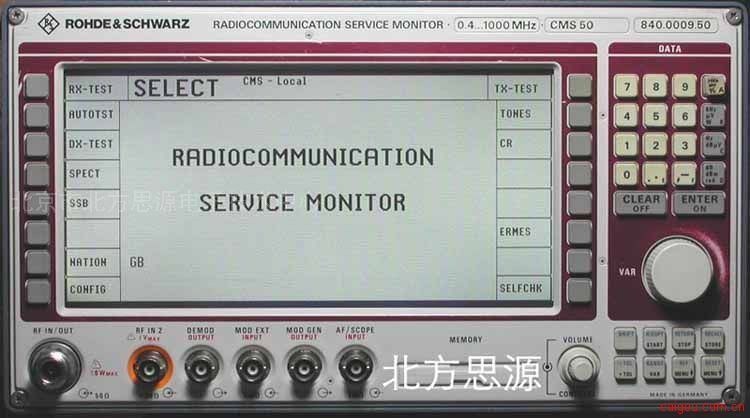

    无线电综测仪 CMS50   仪器租赁


     无线电综测仪 CMS50

    厂家: 德国罗德与施瓦茨

    主要指标:

    • 频率范围:0.4~1000MHz
    • 综测仪分辨率:50Hz
    • 频率误差: ≦1×0.000001
    • 功率范围:5MW~50W(最大可达100W)
    • 输入电平:
      -134至 0dBm(FM,ФM),
      -134 至 -3dBm(AM)
    • 频谱仪范围:1~1000M
    • 分辨带宽:150Hz
    • 调制源范围:20Hz~20KHz
    • 分辨率:0.1Hz

    主要特征:

    • AM FM或者FM以及SSB
    • 模拟和数字信令
    • 高对比度大液晶显示屏
    • 软按键引导操作
    • 菜单结构清晰
    • 设置项与测试结果同屏显示易于测试人员读取数据
    • 手动或自动测量
    • 电缆故障测试
    • 频谱监测
    • 适于特殊应用的可选扩展方式
    • 固定或便携使用,可电池供电
    • 重量轻尺寸小

        CMS50综测仪是一台适用于电台维护、维修和生产的理想的综测仪。内部含有电台测量所需的各种测量功能,利用提供的选件还可扩大它的使用范围至相应的测量领域,它不仅可以满足电台测量的所有要求,也可做某些特殊功能测试。它的轻便特性特别适合于现场测量。由于采用了新的制造技术和自校准功能,CMS50综测仪具有高的测量精度,所以也可用于产品开发和电台生产上。轻便型的多功能无线电综合测试仪尺寸小,重量轻(12kg)。不仅可做固定站使用,综测仪也适用于现场测试采用高对比度的加亮型大屏幕液晶显示,可同时显示设定参数和测量结果,长时间测量眼睛也不会感到疲劳。

        通用型综测仪: 可对各种电台进行收、发信机测试。多种附加测试功能包括:频谱监视示波器,连续可调谐失真表和音频滤波器。可对蜂网电台,集群电台,寻呼机带选呼功能电台进行信令分析。高灵敏度的第二射频输入适用于开场测量;同时也可做网络分析,包括变频器件。准双工测量,不受任何频率和电平的限制。具有自动编程能力,即使没有编程经验的人也可自动编程,自动测量的同时可输出测试报告。菜单式测量选择,使得操作简单方便,符合使用者习惯。配有子菜单,可提供更多的设定和测试程序。

    综测仪配有IEC/IEEE总线。配有放大的模拟显示表,并可显示容限标志。自动进行自我校准及自检,保证测量精度。利用自动测量程序可进行重复测量。

    选配
    调频电台自动测试系统
    简介:
    FM电台中文自动测试软件是基于德国R/S公司的综测仪cms50开发的通过IEEE-488接口与计算机连接,自动测量,结果自动存储,还可根据用户要求查询显示或打印输出。
    系统构成:
    综测仪、IEEE488接口卡、PC机、测试软件等。
    主要功能:
    该软件通过综测仪的488接口与计算机中的488接口卡联接,完成调频电台收、发信机指标的自动测试、自动存储、降低对复杂仪器的操作程序,提高测试效率。
    主要测试项目:
    载波输出率、频率、调制灵敏度、最大频偏、音频谐波失真和、剩余调频、音频预加重特性、可用灵敏度、静噪灵敏度、调制接收带宽、剩余输出电平、音频加重特性等,也可根据用户要求测量一些特殊的指标参数。
