产品概述

适用场所：地震 坍塌 建筑物倒塌下的废墟救援

前段探头可旋转，探头直径仅6mm，为目前直径细的生命探测仪，别适合于狭窄空间救援。采用数字化的图像处理，前端探头自带可调节亮度LED光源和3.5寸的清晰角度可调节液晶显示器，提供清晰的画面。它输出的视频信号能通过多种途径方便地显示出来。

参数

项目 参数

观察方向 直视

视场角 95°

焦距 固定

探头尺寸 φ5.5MM

LED个数 4个

软管种类 意弯曲定型管(防水,防油)

作长度 1M

白平衡 手动

光源类型 亮度可调节LED

显示器 3.5’TFT LCD

显示器转角 上下90°

电池 2200MAH可充电锂电池(可作8小时)

充电器 AC IN 100~240V，DC OUT 12.6V-1A

环境温度 -20℃~80℃

接口选配 □视频输出; □USB2.0; □2.4G无线接收

【Details: 】

Product Overview

Application areas: the earthquake under the rubble of collapsed buildings collapsed and rescue

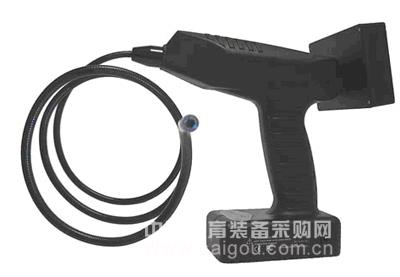

Front-end probe can be rotated, the probe diameter of only 6mm, the current diameter of the smallest of life detector, particularly suitable for confined space rescue. Using digital image processing, front-end probe comes with an adjustable high-brightness LED light source and 3.5-inch high-definition liquid crystal display angle can be adjusted to provide a clear picture. It is the output of the video signal through a variety of ways to easily displayed

Specifications：

Item Parameter

Observation of the direction Observation of the level

FOV 95°

Focus Fix

Probe Size φ5.5MM

LED Number 4

Hose Type Arbitrary curved shape tube (waterproof, anti-oil)

Working length 1M

white Balance Manual

Source Type Adjustable LED brightness

Monitors 3.5’TFT LCD

Display corner Up and down 90 °

Battery 2200MAH rechargeable lithium battery (which can work for 8 hours)

Chargers AC IN 100~240V，DC OUT 12.6V-1A

Environment Temperature -20℃~80℃

Interface Matching □ video output; □ USB2.0; □ 2.4G Wireless Receiver
